Pentadentate Chelator (PDC), the best
for IMAC purification : his-tag purification

If nothing happens:
  1. Right-click on the link "Pentadentate Chelator (PDC)" and select "Save Link As...".
  2. Choose the destination of the file "BestIMAC07.pdf" and click on "Save".
  3. When the download has finished, double-click on the file "BestIMAC07.pdf" and the catalogue will open in Adobe Reader.



Sample : human serum in excess
Matrix volume column : 1 ml of all Ni-Chelators and Cu-PDC-6FF except Qiagen 1.5 ml
Washing buffer : PBS 0.1 M pH 8.0
Elution buffer : PBS 50 mM, Imidazole 500mM pH 7.5

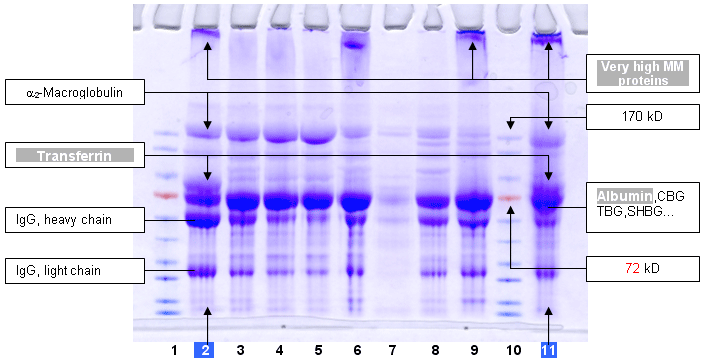

SDS PAGE 12% in the presence of b-mercaptoethanol

1, 10 : Markers expressed in kD : 170, 130, 95, 72, 55, 43, 34, 26, 17, 11
2 : Ni-Sepharose 6 fast flow from GE Healthcare
3 : Ni-PDC-Sepharose 6 fast flow (Ni-PDC-6FF) of Affiland
4 : Ni-PDC-Sepharose 4 fast flow (Ni-PDC-4FF) of Affiland
5 : Ni-PDC-Sepharose CL-4B (Ni-PDC-4S) of Affiland
6 : Ni-PDC-Sepharose CL-6B (Ni-PDC-6S) of Affiland
7 : Ni-His-link from Promega
8 : Ni-PDC-Streamline Quartz Base Matrix (Ni-PDC-SLQ) of Affiland
9 : Ni-NTA from Qiagen
11 : Cu-PDC-Sepharose 6 fast flow (Cu-PDC-6FF) of Affiland

Binding capacity in serial proteins (lyophilized, free of salt)
expressed in milligrams per ml of resin

Affiland Ni-PDC-6FF : 15 mg/ml resin

Affiland Ni-PDC-4FF : 12 mg/ml resin

Affiland Ni-PDC-4S : 12 mg/ml resin

Affiland Ni-PDC-6S : 18 mg/ml resin

Affiland Ni-PDC-SLQ : 10 mg/ml resin

Affiland Cu-PDC-6FF > 50 mg/ ml resin

PDC® : pentadentate chelator, patented products of Affiland

GE Healthcare Ni-6 fast flow : 12 mg/ml resin

Qiagen Ni-NTA : 8 mg/ml resin


Promega His-link : approx.1 mg/ml resin

OBSERVATION : GE Healthcare Ni-6 fast flow gives the same qualitative results as
Affiland Cu-PDC-6 FF


  PDC (pentadentate chelator) & PDC kit for IMAC
  6x His-tagged protein purification with PDC using PDC KIT
  PMIB (polyvalent metal ion binding resin) for water, buffers & proteins free of polyvalent metal ions
  Iminodiacetic acid-Agarose for IMAC
